Paint Oil Varnish Making Formula

Paint Oil Varnish Making Formula is a practical PDF guide for coatings manufacturers, wood-finish makers, startups and entrepreneurs who want to understand and produce paints, drying oils and varnishes, the finishes used to protect and enhance the appearance of wood, metal and other surfaces. Paint adds colour and protection, oils soak into and condition surfaces such as wood, and varnish forms a clear protective film. This page explains how a paint oil varnish making formulation works, what goes into a paint oil varnish making formula, how oil varnishes are cooked, thinned and tested, and how to turn them into a business, with a strong focus on safety in the cooking process.

This guide is published by Chemical Formulation Services, the formulation publishing and consultancy business of CFS Formulation Services Ltd in Sheffield, United Kingdom. It is written for people who want to understand the product from the raw material to the finished pack, and it keeps its claims practical rather than promotional.

Paint, oil and varnish: how they differ

Paint

A liquid made of pigments, binder, solvent and additives. It is applied to add colour and protection, and dries or cures to an opaque coloured film.

Oil finishes

Drying or semi-drying oils such as linseed, tung or walnut oil are applied to wood, where they soak in, harden by reaction with air, enhance grain and give a natural, low-sheen finish. Pure oils dry slowly, so many oil finishes are modified with driers or thinners, or by heat treatment (boiled linseed oil).

Varnish

A transparent coating, made by cooking a drying oil with a resin and thinning with solvent, which dries to a clear, glossy film that protects wood, metal and other surfaces and shows the grain beneath. Traditional oil varnishes (such as spar varnish made from tung oil and phenolic resin) are weather and water resistant and flexible. Modern varnishes include alkyd, polyurethane and acrylic.

What an oil varnish is made of

• Drying oils: linseed oil, tung (China wood) oil, soya oil, dehydrated castor oil and fish oil. These contain unsaturated fatty acids that react with oxygen and polymerise into a solid film. Tung oil dries quickly and gives water-resistant films; linseed oil gives flexible films but yellows.
• Resins: natural resins (rosin, copal, damar, shellac) and synthetic resins (phenolic, maleic, alkyd, hydrocarbon). They harden the film, raise gloss and speed drying.
• Driers (siccatives): metal soaps of cobalt, manganese, zirconium, calcium and zinc that accelerate oxidative drying. Cobalt promotes surface dry, zirconium and calcium assist through-dry. Use of lead driers is restricted.
• Solvents and thinners: mineral spirits (white spirit), turpentine substitutes or aromatic hydrocarbons to adjust viscosity.
• Additives: anti-skinning agents, UV absorbers, flow agents and matting agents.

Choosing oils and resins for the job

Every combination of oil and resin yields a different varnish. For exterior spar varnish used on boats, doors and windows, long oil lengths with tung oil and phenolic resin give flexible, water-resistant films that move with the wood. For interior furniture and floors, medium oil lengths of linseed or soya oil with modified alkyd or maleic resin give harder, faster-drying films with good gloss. For a pale, non-yellowing finish on light woods, alkyd resins based on non-yellowing oils, or acrylic-modified systems, are preferable, since linseed and tung oils darken with age. Marine varnishes include UV absorbers and extra tung oil. Floor varnishes use harder resins and driers that give fast through-dry. Specify the target performance, such as drying time, hardness, gloss and weather resistance, then choose the oil and resin system that meets it, trial in small batches and compare with market products.

Boiled oils, stand oils and raw oils

Raw linseed oil dries slowly, over days, and stays soft. Boiled linseed oil has had metallic driers added (and in the traditional process, been heated), so it dries in around a day or so. Stand oil is oil heat-bodied without air to form a thick, pale, flexible oil that levels well and gives smooth, glossy films, popular in artists’ varnishes and quality finishes. Blown oils are oxidised oils used in some paints. Understanding the differences lets formulators control viscosity, colour and drying behaviour. Buy oils with a certificate that includes acid value, iodine value and colour, since quality varies by season and source. Store oils in sealed, filled containers away from heat and light.

Driers: how much and which

Driers are used in tiny quantities, measured as percent metal on oil weight. Cobalt is a powerful surface drier, but too much causes wrinkling and brittleness. Manganese is a slower, through-drier but darkens films. Zirconium and calcium promote through-dry and help cobalt, and zinc improves hardness and prevents skinning. Many modern driers use cobalt-free systems based on manganese or iron complexes with ligands, as cobalt compounds are under regulatory scrutiny. Add driers at low temperature, mix thoroughly and test drying times on glass strips. Excess drier shortens shelf life and causes surface defects, so find the minimum effective dose.

Scaling up from lab to factory

Laboratory cooks of one or two litres give a feel for the process, but plant batches behave differently because of heat transfer and mixing. Scale gradually, from laboratory to a pilot kettle of tens of litres, then to production batches, and review safety at each scale. Install proper fume extraction, temperature controllers with independent over-temperature cut-offs, kettle lids that can be closed in an emergency, spill containment and fire-fighting equipment. Train operators in emergency procedures. Many small makers choose to buy ready-made resin solutions and bodied oils, and focus on blending, which is far safer and often more economical.

Packaging and labelling

Pack in lined metal cans, glass or plastic bottles resistant to solvents, filled almost to the top to reduce skinning. Label with product type (gloss, satin, matt), intended use, coverage, coats, drying and recoat times, solvent for cleaning, safety statements and disposal advice including warnings about oily rags. Add batch number and date. Offer small sample tins to carpenters and boat owners.

What is inside the Paint Oil Varnish Making Formula guide

The guide briefly explores what paint, oil and varnish are, as terms related to different finishes and coatings used to protect and enhance the appearance of surfaces including wood and metal, and explains that paint consists of pigments, binders, solvents and additives used to add colour and protection. It then provides practical formulas for oil varnishes and related finishes, cooking and thinning methods, testing and safety.

How oil varnish is made

Types of cooked varnish

Long oil varnishes contain a high ratio of oil to resin, giving flexible, durable films for exterior use. Medium oil varnishes balance hardness and flexibility. Short oil varnishes have more resin, are harder and dry faster, but are more brittle and best for interior use.

Cooking the resin and oil

Resin and oil are heated together in a kettle with a lid, a temperature gauge and, ideally, a ventilation and fume extraction system. The temperature is raised gradually to the process temperature, perhaps 200 to 260 degrees Celsius or more, depending on the formula, and held until the resin dissolves into the oil and the mix bodies to the correct viscosity, as judged by sample tests. Cooking is the most dangerous step: hot oil can ignite, boil over or release irritating vapours.

Cooling and thinning

When the batch reaches the required viscosity, it is cooled to a safe temperature, usually below 150 degrees Celsius, before solvent is added in a controlled manner, never at high temperature, because the solvent vapour can ignite explosively. Driers are added at lower temperature.

Filtering and storing

Filter the varnish to remove skins and particles, store in sealed containers and allow to settle. Many varnishes improve after standing for a few days.

Cold-cut methods for small producers

For small scale or safer production, ready-made alkyd resin solutions and boiled oils can be blended with solvent and driers at room temperature, avoiding high-temperature cooking. This approach gives good quality varnishes and is recommended for start-ups without cooking facilities.

Applying varnish

Surfaces should be clean, dry, smooth and free of dust and grease. Sand wood to fine grit, remove dust, and apply thin coats with brush or pad, along the grain. Sand lightly between coats once dry, remove dust and apply further coats. Three coats are typical for interior work, more for exterior or marine. Avoid applying in direct sun, wind or high humidity. Cure for the full recommended time before heavy use. Clean brushes with white spirit.

Testing and quality control

• Viscosity, density and solids content.
• Colour: Gardner colour scale, important for clear finishes.
• Clarity and absence of skins or particles.
• Drying times: set-to-touch, dust-free, tack-free and hard dry.
• Hardness and flexibility of dried film.
• Gloss.
• Water and weather resistance: immersion tests and outdoor exposure.
• Yellowing and ageing.
• Storage stability: skinning, gelling and settling.

Troubleshooting

Varnish dries too slowly

Not enough drier, too much oil or cold conditions. Adjust driers, use more resin and apply thin coats in warm weather.

Varnish skins in the can

Air exposure and drier. Add anti-skinning agent and keep cans full and closed.

Wrinkling of the film

Too thick a coat or surface drying faster than through-drying. Apply thin coats and balance driers.

Cloudiness or bloom

Water or poorly dissolved resin. Dry materials and cook properly.

Yellowing

Linseed oil and heating. Use tung or alkyd systems, lower temperature and shorter cook.

Brittle or cracking film

Too short oil length. Increase oil content for flexibility.

Safety, fire and environment

Cooking oils and resins involves very high temperatures, flammable vapours and the risk of boil-over and fire. Use a well-ventilated area, a kettle with a close-fitting lid, temperature control, fire extinguishers (foam or dry powder, not water), and never leave the batch unattended. Never add solvent to hot oil. Rags soaked with drying oils can heat and ignite spontaneously, so spread them to dry or store them in water in closed metal bins. Wear gloves, safety glasses and respirators. Cobalt driers are classified as hazardous, so handle carefully. Follow VOC limits for solvents. Dispose of waste and solvents responsibly. Provide safety data sheets and labels.

Business opportunity

Varnish is used by carpenters, furniture makers, boat owners, joiners, builders, craft shops and homeowners. Products can include clear gloss, satin and matt varnishes, exterior spar varnish, floor varnish, tung oil finish, Danish oil, wood stains with varnish and metal protective varnishes. Packaging runs from small tins for hobbyists to 5 and 20 litre pails for trades. Private label for hardware and timber merchants is common. Customers value consistent quality, clear instructions and fast delivery.

Related CFS guides help you build a wood-finish range. Browse the Varnish Making, Lacquer Products and Wood Polish Formulation categories, and see , Quick Drying Enamel Varnish Formula, High Gloss Over Print Varnish Formula, Concentrated Wood Stain Formula, Wooden Post Preservatives Formula, and .

Getting started

Begin with cold-cut varnish using alkyd resin solution, boiled linseed oil, driers and white spirit. Make small batches, brush test panels, compare drying, gloss and durability with a commercial varnish. Once confident and with the right safety facilities, move to cooked varnishes. Prepare labels, safety data and a simple application guide, then approach joiners, boat yards and hardware shops.

How to get the best results from this guide

Treat the guide as a tested starting point rather than a finished factory. Begin with a small trial batch in the laboratory or on a bench, using the exact raw materials you plan to buy, and record every weight, temperature, mixing time and observation. Compare the result with the quality checks in the guide, change only one thing at a time, and keep a note of what each change did. Once a small batch is consistently good, repeat it several times, then scale up in stages, because mixing, heating and cooling behave differently in larger vessels. Keep retained samples of every batch, write simple standard operating procedures for your team, and build relationships with two suppliers for each key raw material. Finally, check the labelling, safety and product rules in the country where you will sell, and ask a qualified person to review your process. This careful, documented approach is what turns a good formulation into a reliable product and a trusted brand.

Who should buy this guide?

The guide is written for practical readers. It suits manufacturers who want to add a new product to an existing plant, startups choosing their first product, private-label brands that need to understand what they are buying, technical staff who must set specifications and train operators, and consultants and students who want a structured, plain-language reference. It is less suitable for anyone looking for a quick shortcut or a guarantee, because every formulation still needs testing with your own materials, equipment and local rules. If you are unsure whether it matches your project, send a short question through the contact page before you order, and we will tell you honestly whether it fits.

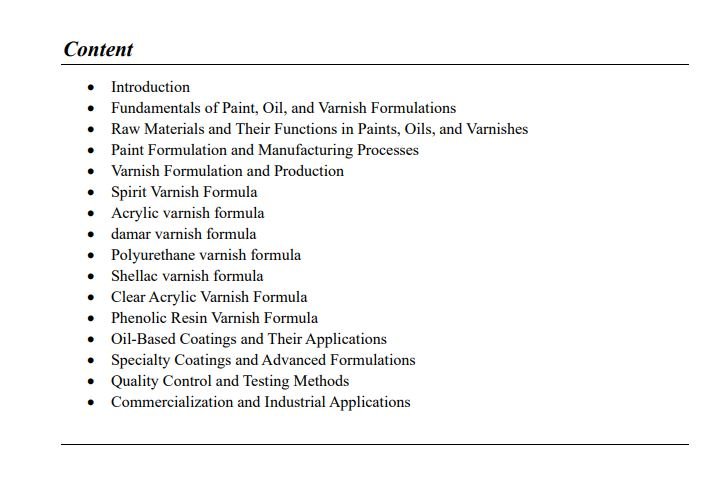

What is inside the Paint Oil Varnish Making Formula guide

Every Product Making Guide in our shop follows the same structure so you know where to look. This guide includes the product formula, the ingredients and materials, the procedure and preparations, the industrial requirements and the technical specifications. In practice you receive:

1. The formulation, written so you can follow it at the bench and scale it up.
2. Ingredients and materials, with the job of each material and advice on grades and suppliers.
3. The manufacturing procedure, including order of addition, mixing and preparations.
4. Industrial requirements, covering equipment, space and packaging.
5. Technical specifications, describing what a good finished product should look like and how it should behave.
6. Troubleshooting for the faults that makers meet most often.
7. Business guidance, to help you take the product from the bench to the market.

These Product Making Guides of chemical formulations and formulas are for manufacturers, startups and entrepreneurs. Every guide contains industrially tested, practical formulations. Anyone who buys a guide can make the product by following its step-by-step instructions. Raw materials vary between suppliers, so always confirm your results with a small trial batch before scaling up.

Who stands behind this guide?

Chemical Formulation Services is the trading name of CFS Formulation Services Ltd, registered in England and Wales under company number 16678503, with its office at Unit F, Winston Business Park, Churchill Way, Sheffield S35 2PS. The business was founded by George Enrick and publishes formulation manuals, technical guides and industry reports. You can check our details on the Companies House register, read about us, or contact us with any question before you order.

A written formulation cannot replace testing with your own raw materials, equipment and climate, and we say so plainly. What the guide does give you is a tested, structured starting point that can save you months of trial and error. Our terms and conditions explain what a purchase from us covers.

How to order

1. Select Add to cart to keep browsing, or Buy Now to go straight to checkout.
2. Pay with PayPal, Stripe, Xoom by PayPal, Payoneer, payment links for debit and credit cards, or Western Union, Ria and all money exchanges.
3. If you pay through a money exchange, email your payment slip to Info@chemicalformulationservices.com. After confirmation, your instant download link is emailed to you.
4. For online payments, the PDF is available as soon as the payment is confirmed.

All products are digital downloads and all payments are nonrefundable once the file is delivered, so please read the refund policy and the FAQs before you order. You can compare this guide with others in the formula shop or browse our industrial project reports.

Frequently asked questions about paint oil varnish making formula

What is the Paint Oil Varnish Making Formula guide?

It is a digital PDF Product Making Guide to paints, oil finishes and varnishes, covering ingredients, cold-cut and cooked methods, testing and safety.

What is the difference between paint and varnish?

Paint contains pigment and gives opaque colour, while varnish is clear and shows the surface beneath.

What do driers do?

They speed oxidative drying of oils. Cobalt helps surface drying, zirconium and calcium help through-drying.

Is varnish cooking dangerous?

Yes. High temperatures and flammable vapours risk fire and boil-over, so use proper facilities or cold-cut methods.

Why can oily rags catch fire?

Drying oils release heat as they oxidise, which can lead to spontaneous combustion.

How do I receive the guide?

You receive an instant PDF download after payment is confirmed. For money exchanges, email your payment slip to Info@chemicalformulationservices.com and the link is emailed after we confirm it.

Is the payment refundable?

All payments are nonrefundable because the product is an instant digital download. See the refund policy for details.

Can you help with a custom formulation?

CFS Formulation Services Ltd offers formulation and product development consultancy. Send a short brief through the Contact page.

Last reviewed: November 2026. This page is general information about a digital product. It is not a safety data sheet or professional advice, and any formulation should be tested and reviewed by a qualified person before commercial use.
